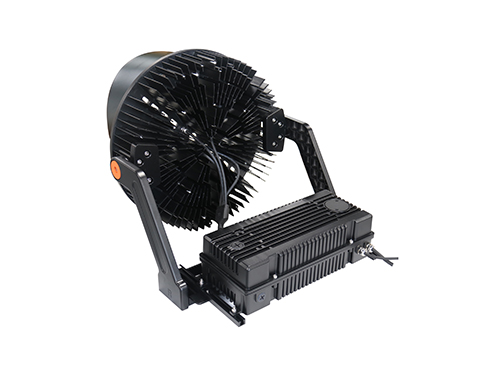

1.The driver is placed in a separate driver box, which helps to lower the working temperature and greatly extend the lifetime of the led fixture;
2.The driver box can be disassembled and installed on the bottom of the light pole as a whole, so that the drivers can be replaced without hiring a crane;
3.Fast and convenient wiring, and multiple led fixtures can be connected in series via AC wires;
| Power(W) | Input Voltage | Delivered Lumens (lm) |
Efficacy (Im/W) |
CRI | Beam Angle | Available CCT | Operating Temp | IP Rating |
| 400 | 120-277/277-480 | 52,000-58,000 | 130-145 | Ra>70 | 30°、40°、80°、120° | 4000K/4500K/5000K/5700K | -40°~45°C | IP65 |
| 500 | 65,000-72,500 | 130-145 | Ra>70 | 30°、40°、80°、120° | -40°~45°C | IP65 | ||
| 600 | 78,000-87,000 | 130-145 | Ra>70 | 20°、30°、40°、60° | -40°~45°C | IP65 | ||
| 750 | 97,500-108,750 | 130-145 | Ra>70 | 20°、30°、40°、60° | -40°~45°C | IP65 | ||
| 1000 | 130,000-145,000 | 130-145 | Ra>70 | 20°、30°、40° | -40°~45°C | IP65 | ||
| 1200 | 156,000-174,000 | 130-145 | Ra>70 | 20°、30°、40° | -40°~45°C | IP65 |
